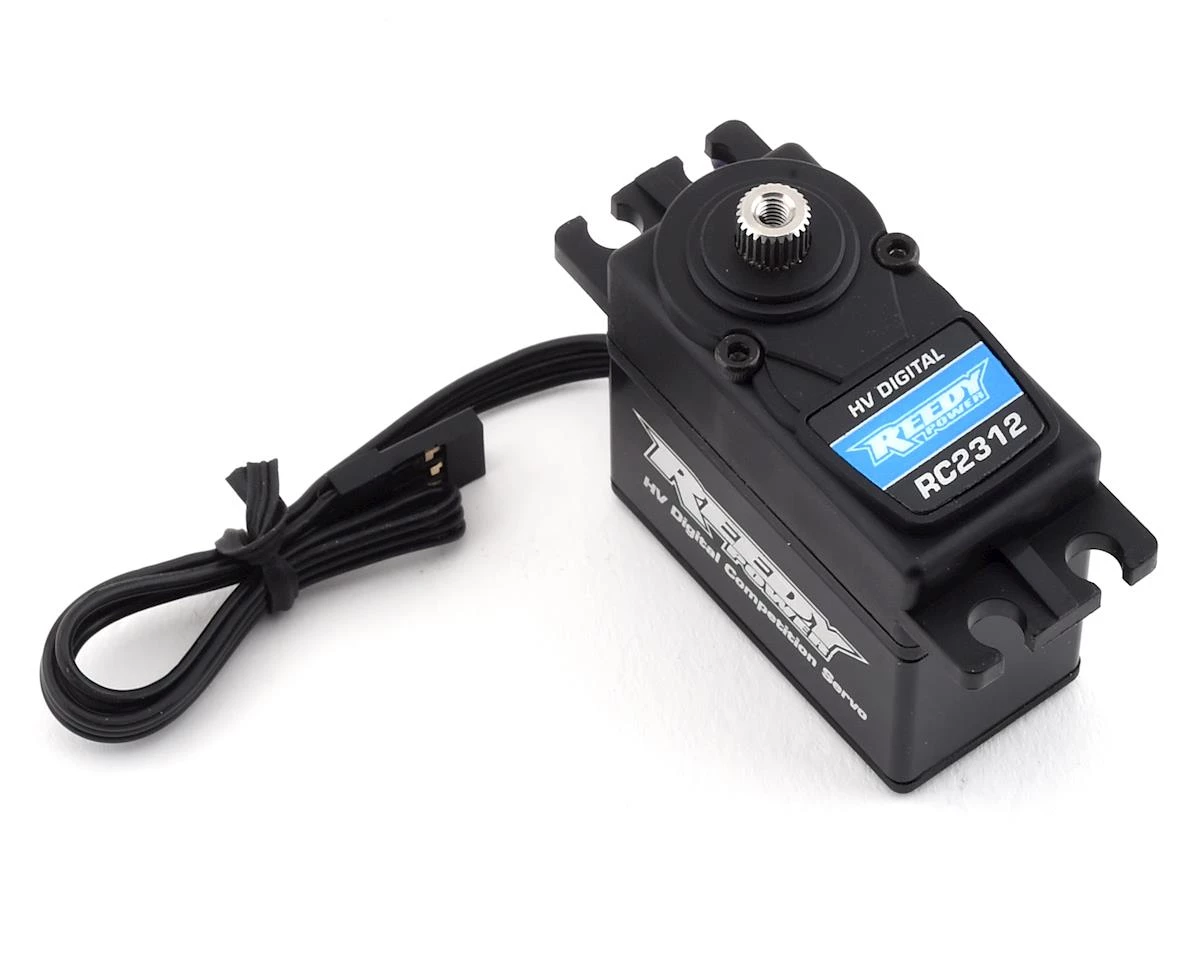

Reedy RC2312 Digital Competition Crawler Metal Gear Servo (High Voltage)

The Reedy RC2312 Digital Competition Crawler Metal Gear Servo is trail-tested and engineered for use in competition-level trail trucks and crawlers. Powerful motors create incredible torque without sacrificing speed, while an advanced microprocessor provides precision steering control.

An all-metal gear set is designed for strength and durability while an integrated aluminum mid-case reduces operating temperatures for fade-free operation. The soft-centering function centers the servo slowly on power-up for scale appearance and steering system damage prevention. High voltage compatibility allows users to take advantage of external BEC units.

• Water and dust resistant
• Aluminum mid-case
• Powerful coreless motor
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible

• Input (V): 6.0-7.4
• Speed (sec/60 deg):
• 6.0V: 0.15
• 7.4V: 0.12
• Torque:
• 6.0V: 268 oz-in (19.3 kg-cm)
• 7.4V: 322 oz-in (23.2 kg-cm)
• Dimensions (mm): 39.5 x 20.0 x 38.5
• Weight (g): 63.5
• Spline: 25
