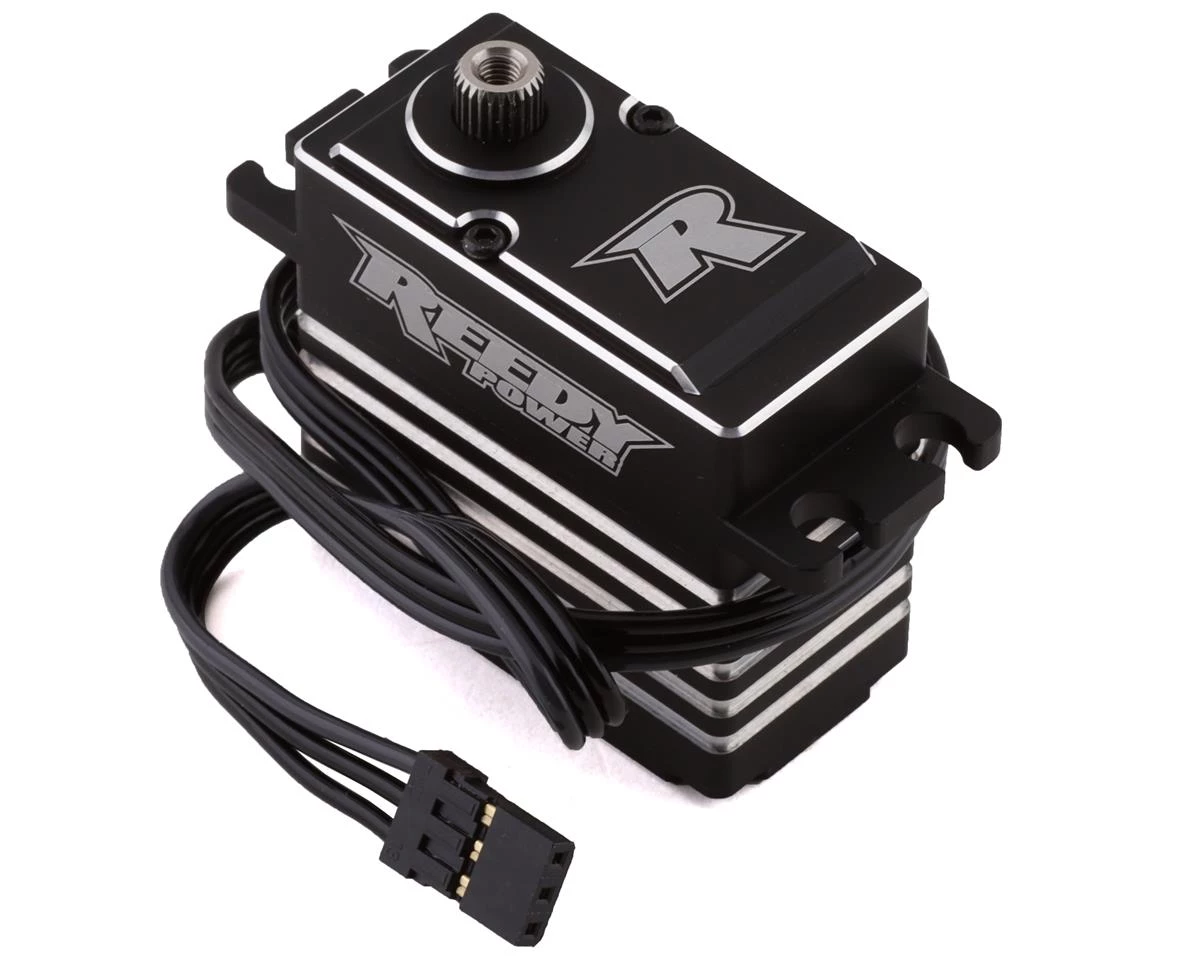

Reedy RC4020A Digital Competition Crawler Metal Gear Servo (High Voltage)

The Reedy RC4020A Digital Competition Crawler Metal Gear Servo is trail-tested and engineered for use in competition-level trail trucks, crawlers, and monster trucks. A powerful motor creates incredible torque without sacrificing speed, while an advanced microprocessor provides precision steering control.

An all-metal gear set is designed for strength and durability while a CNC-machined full-aluminum case reduces operating temperatures for fade-free operation. Thanks to HV 8.4V compatibility, external BEC units can be utilized to create an incredible 50 kg-cm (695 in-oz) of torque.

Input (V): 4.8 – 8.4

Motor: Brushless

Speed (sec/60deg), 6.0V: .150

Speed (sec/60deg), 7.4V: .135

Speed (sec/60deg), 8.4V: .12

Torque (kg-cm/oz-in), 6.0V: 37/514

Torque (kg-cm/oz-in), 7.4V: 44/612

Torque (kg-cm/oz-in), 8.4V: 50/695

Dimensions (mm): 40x20x37.5

Weight (g): 82

Spline: 25
